Engine Mount RH — Installation — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5087

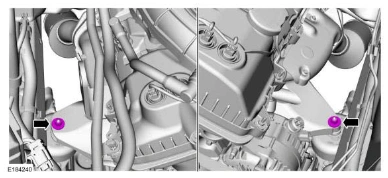

Torque

: 46 lb.ft (63 Nm)

Engine Mount RH — original illustration 1, reference 5087Original colors & callouts · Select to enlarge

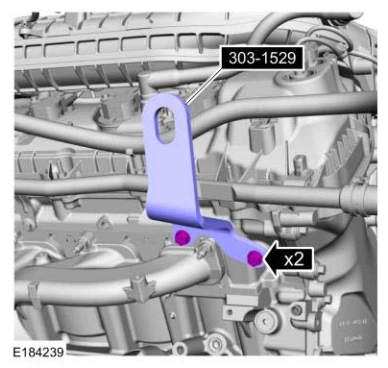

5. Remove Special Service Tool: 303-1529 Lift Eye, Engine.

Engine Mount RH — original illustration 2, reference 5087Original colors & callouts · Select to enlarge

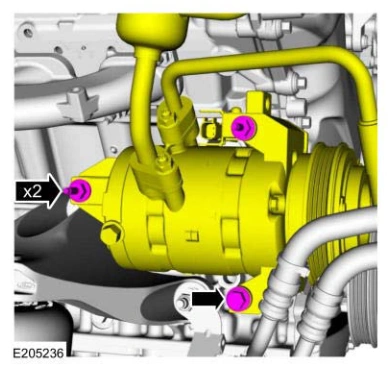

6. Position the A/C compressor and install the stud bolts and bolt.

Torque

: 18 lb.ft (25 Nm)

Engine Mount RH — original illustration 3, reference 5087Original colors & callouts · Select to enlarge
