Engine Mount RH — Installation — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5086

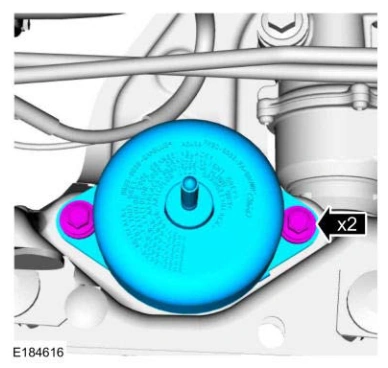

Install the engine mount and the bolts.

Torque

: 52 lb.ft (70 Nm)

Engine Mount RH — original illustration 1, reference 5086Original colors & callouts · Select to enlarge

2. Lower the engine and remove the special tool.

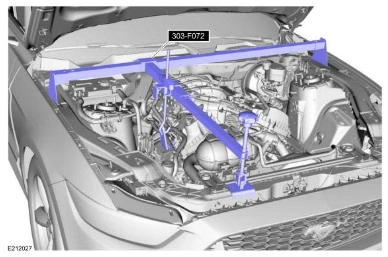

Install Special Service Tool: 303-F072 Support Bar, Engine.

Engine Mount RH — original illustration 2, reference 5086Original colors & callouts · Select to enlarge

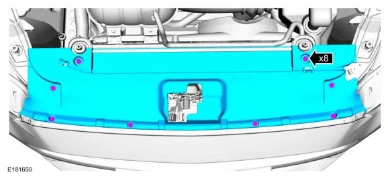

3. Install the radiator top shield and the retainers.

Engine Mount RH — original illustration 3, reference 5086Original colors & callouts · Select to enlarge

4. Install the RH and LH engine mount nuts.
