Engine Mount RH — Removal — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5083

REMOVAL AND INSTALLATION > ENGINE MOUNT RH > REMOVAL

1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

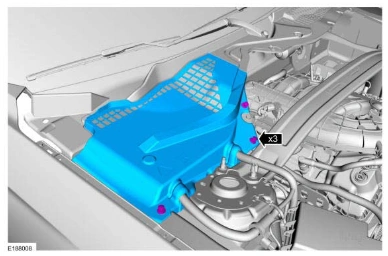

2. Remove the retainers and the battery cover.

Engine Mount RH — original illustration 1, reference 5083Original colors & callouts · Select to enlarge

3. Remove the following items:

Refer to: AIR CLEANER OUTLET PIPE .

Refer to: AIR CLEANER - 3.7L Duratec (227kW/301PS).

4. Remove the A/C compressor belt. Refer to: AIR CONDITIONING (A C) COMPRESSOR BELT .

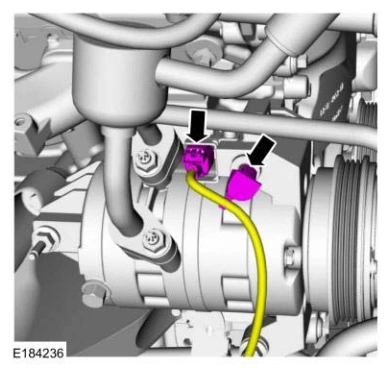

5. Disconnect the A/C compressor electrical connector and the wire harness retainer.

Engine Mount RH — original illustration 2, reference 5083Original colors & callouts · Select to enlarge
