Engine Mount LH — Installation

Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,080HTML edition
← Chapter contentsManual collection
Engine Mount LH — original illustration 1, reference 5080Original colors & callouts · Select to enlarge

4. Install the radiator top shield and the retainers.

Engine Mount LH — original illustration 2, reference 5080Original colors & callouts · Select to enlarge

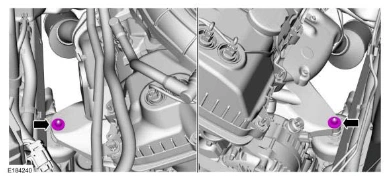

5. Install the RH and LH engine mount nuts.

Torque

: 46 lb.ft (63 Nm)

Engine Mount LH — original illustration 3, reference 5080Original colors & callouts · Select to enlarge

6. Remove Special Service Tool: 303-1245 Engine Lift Eye.
