Engine Mount LH — Installation

Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,079HTML edition
← Chapter contentsManual collection

Convertible/Coupe

NOTE: Do not install the bolts at this time.

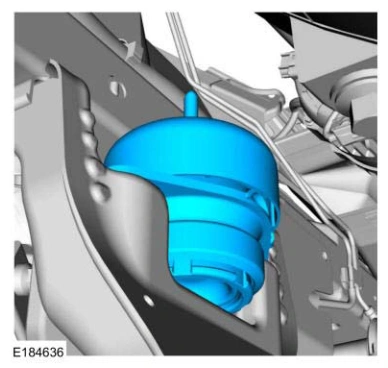

1. Install the engine mount.

Engine Mount LH — original illustration 1, reference 5079Original colors & callouts · Select to enlarge

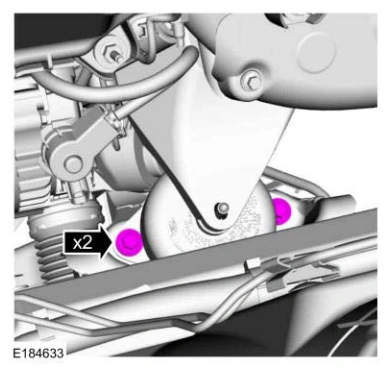

2. Install the bolts for the engine mount.

Torque

: 52 lb.ft (70 Nm)

Engine Mount LH — original illustration 2, reference 5079Original colors & callouts · Select to enlarge

3. Lower the engine and remove the special tool.

Remove Special Service Tool: 303-F072 Support Bar, Engine.
