Engine Mount LH — Removal

Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,077HTML edition
← Chapter contentsManual collection
Engine Mount LH — original illustration 1, reference 5077Original colors & callouts · Select to enlarge

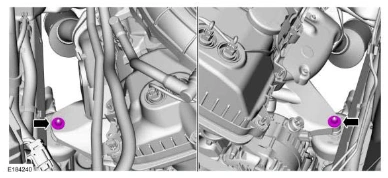

9. Remove the RH and LH engine mount bracket nuts.

Engine Mount LH — original illustration 2, reference 5077Original colors & callouts · Select to enlarge

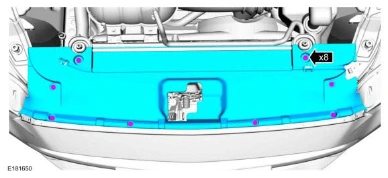

10. Remove the retainers and the radiator top shield.

Engine Mount LH — original illustration 3, reference 5077Original colors & callouts · Select to enlarge

11. Install the special tool and raise the engine.

Install Special Service Tool: 303-F072 Support Bar, Engine.
