Engine Front Cover — Installation — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5074

B: 18 lb.in (2 Nm)

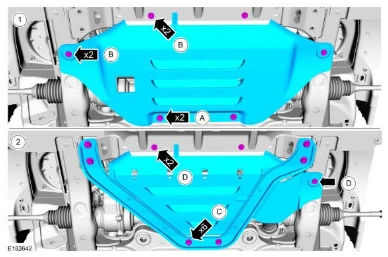

2. Install the subframe bracket and underbody shield assembly and the bolts.

Torque:

C: 46 lb.ft (63 Nm)

D: 18 lb.in (2 Nm)

Engine Front Cover — original illustration 1, reference 5074Original colors & callouts · Select to enlarge

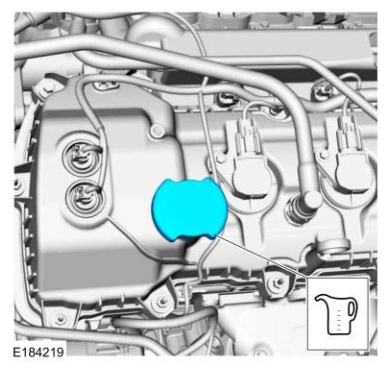

16. Fill the engine with clean engine oil. Refer to: Specifications .

Material

: Motorcraft® SAE 5W-20 Premium Synthetic Blend Motor Oil (U.S.) / XO-5W20-QSP (U.S.) (WSS-M2C945-A)

Engine Front Cover — original illustration 2, reference 5074Original colors & callouts · Select to enlarge

17. Fill the cooling system. Refer to: COOLING SYSTEM DRAINING AND VACUUM FILLING .

18. After completing the repairs, perform the Misfire Monitor Neutral Profile Correction procedure using a diagnostic scan tool.
