Engine Front Cover — Installation — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5072

Torque

: 89 lb.in (10 Nm)

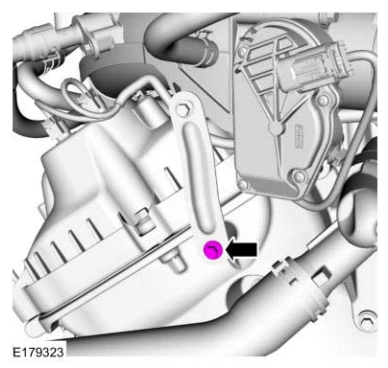

Engine Front Cover — original illustration 1, reference 5072Original colors & callouts · Select to enlarge

12. Remove the oil pan drain plug and drain the engine oil.

Use the General Equipment: Oil Drain Equipment

Install the oil pan drain plug.

Torque

: 20 lb.ft (27 Nm)

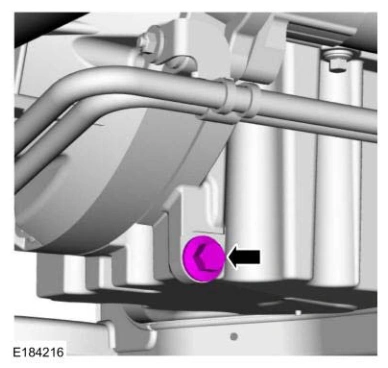

Engine Front Cover — original illustration 2, reference 5072Original colors & callouts · Select to enlarge

13. Remove and discard the engine oil filter.

Use the General Equipment: Oil Drain Equipment
