Engine Front Cover — Installation — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5069

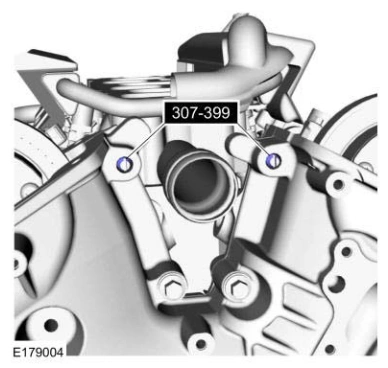

Engine Front Cover — original illustration 1, reference 5069Original colors & callouts · Select to enlarge

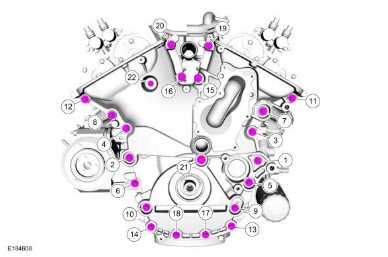

6. Install the remaining engine front cover bolts.

Torque:

Stage 1: Tighten bolts 1 thru 21 to: 89 lb.in (10 Nm)

Stage 2: Tighten bolts 1 thru 20 to: 18 lb.ft (24 Nm)

Stage 3: Tighten bolt 21 to: 177 lb.in (20 Nm)

Stage 4: Tighten bolt 21 an additional: 90°

Stage 5: Tighten bolt 22 to: 89 lb.in (10 Nm)

Stage 6: Tighten bolt 22 an additional: 45°

Engine Front Cover — original illustration 2, reference 5069Original colors & callouts · Select to enlarge

7. Install the upper intake manifold support bracket and the bolt finger-tight.
