Engine Front Cover — Installation — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5068

Apply a 3.0 mm (0.11 in) bead of Motorcraft® High Performance Engine RTV Silicone to the engine front cover sealing surfaces including the inner bolt bosses.

Material

: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

Apply a 5.5 mm (0.21 in) bead of Motorcraft® High Performance Engine RTV Silicone to the oil pan-to-cylinder block joint and the cylinder head-to-cylinder block joint areas of the engine front cover in places as indicated.

Material

: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

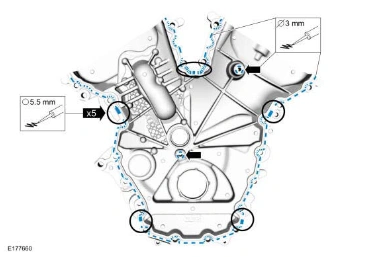

Engine Front Cover — original illustration 1, reference 5068Original colors & callouts · Select to enlarge

NOTE: Make sure the 2 locating dowel pins are seated correctly in the cylinder block.

4. Install the engine front cover and the bolts.

Torque

: 27 lb.in (3 Nm)

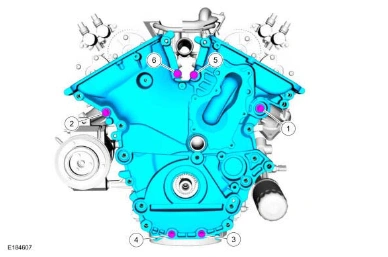

Engine Front Cover — original illustration 2, reference 5068Original colors & callouts · Select to enlarge

5. Remove Special Service Tool: 307-399 Alignment Pins, Transmission Fluid Pump.
