Engine Front Cover — Installation — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5067

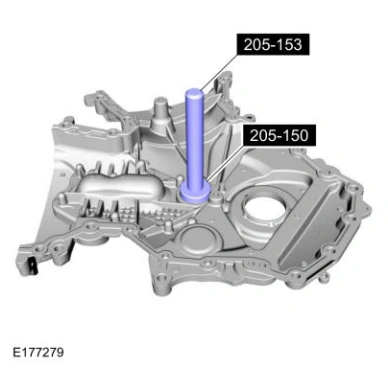

Using the special tools, install the engine front cover to coolant pipe seal.

Use Special Service Tool: 205-150 (T80T-4000-S) Installer, Spindle Bearing, 205-153 (T80T- 4000-W) Handle.

Engine Front Cover — original illustration 1, reference 5067Original colors & callouts · Select to enlarge

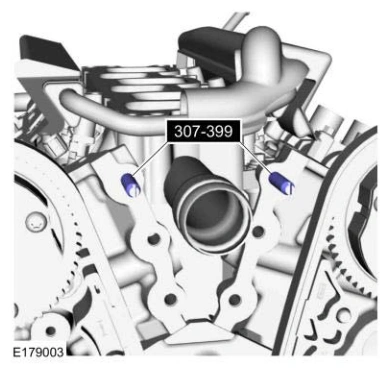

2. Install Special Service Tool: 307-399 Alignment Pins, Transmission Fluid Pump.

Engine Front Cover — original illustration 2, reference 5067Original colors & callouts · Select to enlarge

NOTE: Failure to use Motorcraft® High Performance Engine RTV Silicone may cause the engine oil to foam excessively and result in serious engine damage.

NOTE: The engine front cover and the bolts must be installed within 4 minutes of the initial sealant application. The remainder of the engine front cover bolts must be installed and tightened within 35 minutes of the initial sealant application. If the time limits are exceeded, the sealant must be removed, the sealing area cleaned and sealant reapplied. Failure to follow this procedure can cause future oil leakage.
