Engine Front Cover — Removal — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5064

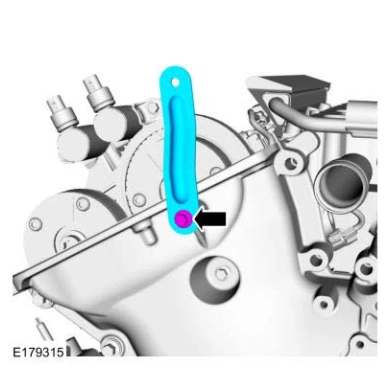

Engine Front Cover — original illustration 1, reference 5064Original colors & callouts · Select to enlarge

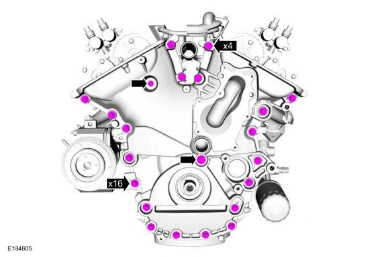

8. Remove the engine front cover bolts.

Engine Front Cover — original illustration 2, reference 5064Original colors & callouts · Select to enlarge

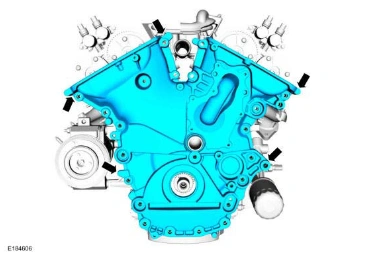

9. Using a pry tool, locate the pry pads shown in illustration and pry the engine front cover loose and remove.

Engine Front Cover — original illustration 3, reference 5064Original colors & callouts · Select to enlarge

10. Using the special tools, remove the engine front cover to coolant pipe seal.

Use Special Service Tool: 205-150 (T80T-4000-S) Installer, Spindle Bearing, 205-153 (T80T- 4000-W) Handle.
