Engine Front Cover — Removal

Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,063HTML edition
← Chapter contentsManual collection
Engine Front Cover — original illustration 1, reference 5063Original colors & callouts · Select to enlarge

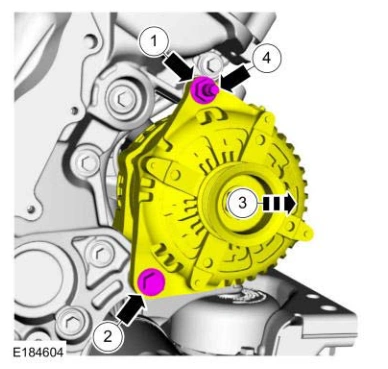

6.

1. Remove the nut.

2. Remove the bolt.

3. Position the generator aside.

4. Remove the stud bolt.

Engine Front Cover — original illustration 2, reference 5063Original colors & callouts · Select to enlarge

7. Remove the bolt and the upper intake manifold support bracket.
