Engine Front Cover — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5060

Engine Front Cover — original illustration 1, reference 5060Original colors & callouts · Select to enlarge

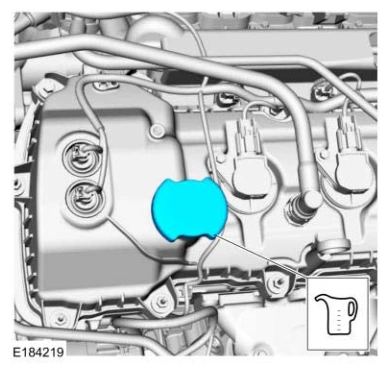

16. Fill the engine with clean engine oil. Refer to: Specifications .

Material

: Motorcraft® SAE 5W-20 Premium Synthetic Blend Motor Oil (U.S.) / XO-5W20-QSP (U.S.) (WSS-M2C945-A)

Engine Front Cover — original illustration 2, reference 5060Original colors & callouts · Select to enlarge

17. Connect the battery ground. Refer to: Battery Disconnect and Connect .

18. Start and check the exhaust system for leaks.

REMOVAL AND INSTALLATION > ENGINE FRONT COVER

Special Tool(s) / General Equipment
