Cylinder Head RH — Installation — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5058

10. Install the RH camshafts. Refer to: Camshafts .

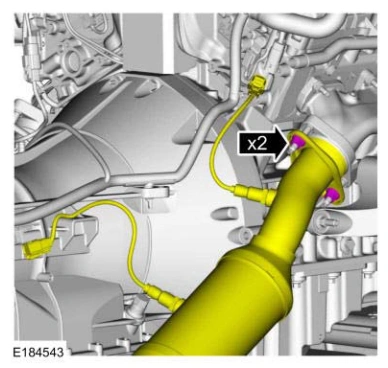

11. Position the RH catalytic converter and install new flange nuts.

Torque

: 30 lb.ft (40 Nm)

Cylinder Head RH — original illustration 1, reference 5058Original colors & callouts · Select to enlarge

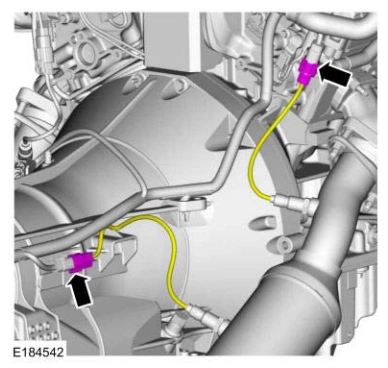

12. Connect the RH HO2S and catalyst monitor sensor electrical connectors.

Cylinder Head RH — original illustration 2, reference 5058Original colors & callouts · Select to enlarge

13. Remove the oil pan drain plug and drain the engine oil.

Use the General Equipment: Oil Drain Equipment

Install the oil pan drain plug.
