Cylinder Head RH — Installation — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5059

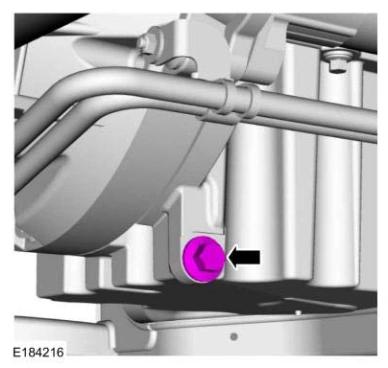

Torque

: 20 lb.ft (27 Nm)

Cylinder Head RH — original illustration 1, reference 5059Original colors & callouts · Select to enlarge

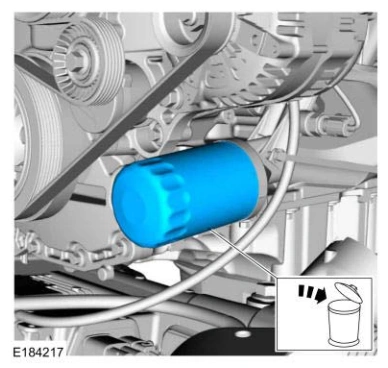

14. Remove and discard the engine oil filter.

Use the General Equipment: Oil Drain Equipment

Cylinder Head RH — original illustration 2, reference 5059Original colors & callouts · Select to enlarge

NOTE: Do not lubricate the engine oil filter seal.

15. Install a new engine oil filter.

Torque:

Stage 1: 44 lb.in (5 Nm)

Stage 2: 180°
