Engine Front Cover — Removal

Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,062HTML edition
← Chapter contentsManual collection

bracket and underbody shield assembly.

2.

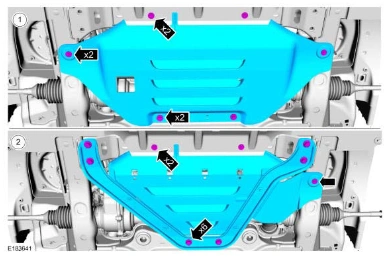

1. Remove the bolts and the underbody shield.

2. Remove the bolts and the subframe bracket and underbody shield assembly.

Engine Front Cover — original illustration 1, reference 5062Original colors & callouts · Select to enlarge

3. Drain the cooling system. Refer to: COOLING SYSTEM DRAINING AND VACUUM FILLING .

4. Remove the following items:

Refer to: Valve Cover LH .

Refer to: Valve Cover RH .

Refer to: Crankshaft Front Seal .

Refer to: COOLANT PUMP .

5. Remove the bolts and the accessory drive belt tensioner.
