Valve Cover LH — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5209

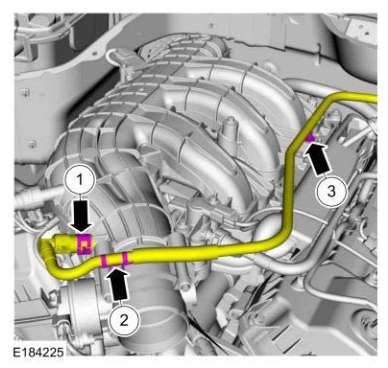

1. Connect the vacuum hose to the upper intake manifold.

Use the General Equipment: Hose Clamp Remover/Installer

2. Attach the vacuum hose retainer to the throttle body.

3. Attach the vacuum hose retainer to the upper intake manifold.

Valve Cover LH — original illustration 1, reference 5209Original colors & callouts · Select to enlarge

6. Install the air cleaner outlet pipe. Refer to: AIR CLEANER OUTLET PIPE .

REMOVAL AND INSTALLATION > VALVE COVER LH

Special Tool(s) / General Equipment

Valve Cover LH — original illustration 2, reference 5209Original colors & callouts · Select to enlarge

205-142 (T80T-4000-J) Installer, Differential Bearing Cone

Valve Cover LH — original illustration 3, reference 5209Original colors & callouts · Select to enlarge

205-153 (T80T-4000-W) Handle
