Upper Intake Manifold — Installation — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5208

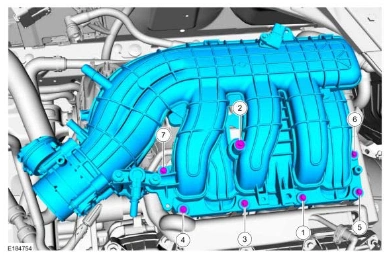

Upper Intake Manifold — original illustration 1, reference 5208Original colors & callouts · Select to enlarge

3. Install the upper intake manifold support bolt.

Torque

: 89 lb.in (10 Nm)

Connect the wiring harness retainers.

Connect the throttle body and MAP sensor electrical connectors.

Connect the PCV tube to the upper intake manifold.

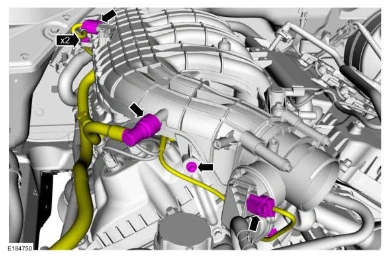

Upper Intake Manifold — original illustration 2, reference 5208Original colors & callouts · Select to enlarge

4. Connect the EVAP purge valve quick release coupling. Refer to: QUICK RELEASE COUPLING .

Attach the wiring harness retainers.

Connect the EVAP purge valve electrical connector.

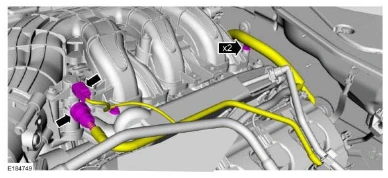

Upper Intake Manifold — original illustration 3, reference 5208Original colors & callouts · Select to enlarge
