Upper Intake Manifold — Removal

Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,206HTML edition
← Chapter contentsManual collection

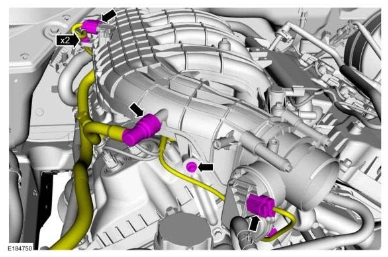

Upper Intake Manifold — original illustration 1, reference 5206Original colors & callouts · Select to enlarge

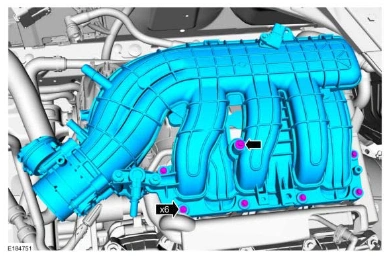

5. Remove the bolts and the upper intake manifold.

Upper Intake Manifold — original illustration 2, reference 5206Original colors & callouts · Select to enlarge

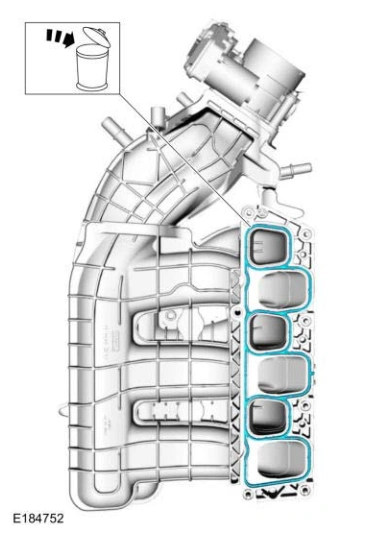

6. Remove and discard the upper intake manifold gaskets.

Clean and inspect all of the sealing surfaces of the upper and lower intake manifold.

Upper Intake Manifold — original illustration 3, reference 5206Original colors & callouts · Select to enlarge
