Timing Chain — Installation

Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,203HTML edition
← Chapter contentsManual collection

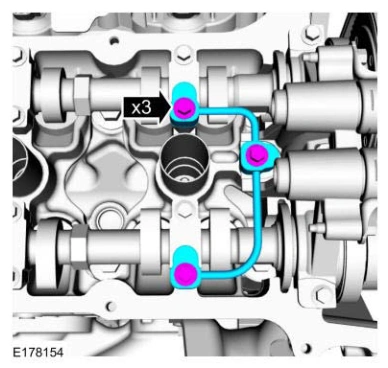

Install the RH oil tube and the bolts.

Torque:

Stage 1: 71 lb.in (8 Nm)

Stage 2: 45°

Timing Chain — original illustration 1, reference 5203Original colors & callouts · Select to enlarge

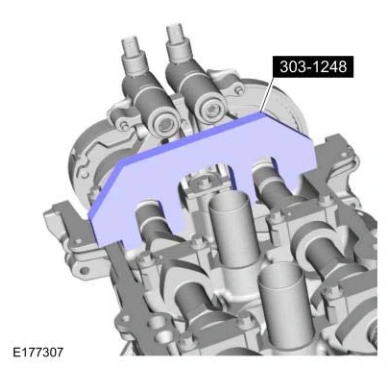

10. Remove Special Service Tool: 303-1248 Camshaft holding tools.

Timing Chain — original illustration 2, reference 5203Original colors & callouts · Select to enlarge

11. Install the LH oil tube and the bolts.

Torque:

Stage 1: 71 lb.in (8 Nm)

Stage 2: 45°
