Timing Chain — Installation — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5202

NOTE: Do not use excessive force when installing the VCT oil control solenoid. Damage to the mega cap could cause the cylinder head to be inoperable. If difficult to install the VCT oil control solenoid, inspect the bore and VCT oil control solenoid to ensure there are no burrs, sharp edges or contaminants present on the mating surface. Only clean the external surfaces as necessary.

NOTE: A slight twisting motion will aid in the installation of the VCT oil control solenoid.

NOTE: Keep the VCT oil control solenoid clean of dirt and debris.

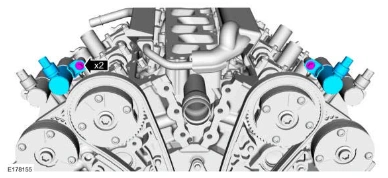

7. Install the VCT oil control solenoids and the bolts.

Torque:

Stage 1: 71 lb.in (8 Nm)

Stage 2: 20°

Timing Chain — original illustration 1, reference 5202Original colors & callouts · Select to enlarge

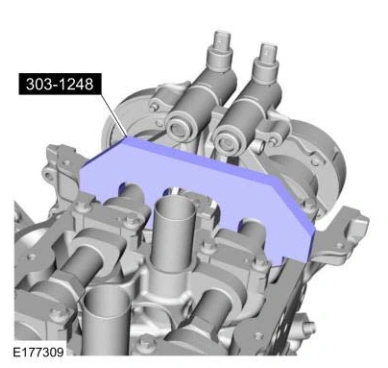

8. Remove Special Service Tool: 303-1248 Camshaft holding tools.
