Upper Intake Manifold — Installation — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5207

REMOVAL AND INSTALLATION > UPPER INTAKE MANIFOLD > INSTALLATION

NOTE: If the engine is repaired or replaced because of upper engine failure, typically including valve or piston damage, check the intake manifold for metal debris. If metal debris is found, install a new intake manifold. Failure to follow these instructions can result in engine damage.

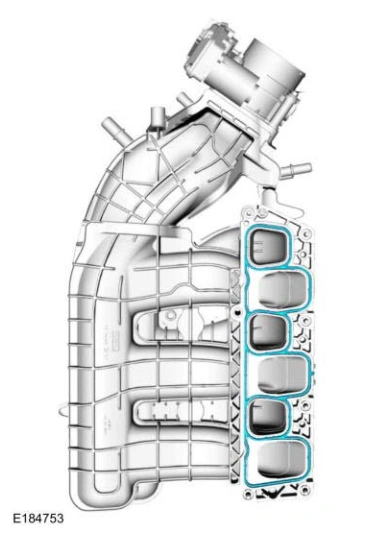

1. Install the new upper intake manifold gaskets.

Upper Intake Manifold — original illustration 1, reference 5207Original colors & callouts · Select to enlarge

2. Install the upper intake manifold and the bolts.

Torque:

Stage 1: 89 lb.in (10 Nm)

Stage 2: 45°
