Valve Cover LH — Removal

Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,210HTML edition
← Chapter contentsManual collection
Valve Cover LH — original illustration 1, reference 5210Original colors & callouts · Select to enlarge

303-1247VCT Spark Plug Tube Seal Remover and Installer TKIT-2006UF-FLM TKIT-2006UF-ROW

Plastic Scraper

Materials

Name

Specification

Motorcraft® High Performance Engine RTV Silicone TA-357

WSE-M4G323-A6

Motorcraft® Silicone Gasket Remover ZC-30-A

-

Motorcraft® Metal Surface Prep ZC-31-B

-

Metal Brake Parts Cleaner (U.S.)PM-4-A, PM-4-B (U.S.)

-

REMOVAL AND INSTALLATION > VALVE COVER LH > REMOVAL

NOTE: Installation of new spark plug seals or VCT seals is only required if seals are damaged.

NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces that enters the oil passages, coolant passages or the oil pan, can cause engine failure.

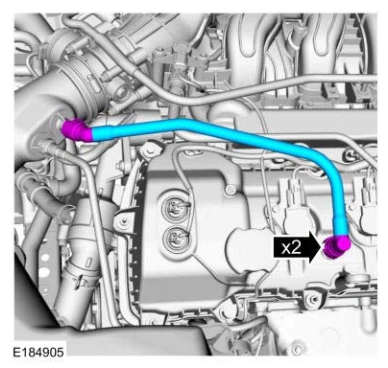

1. Remove the crankcase vent tube.

Valve Cover LH — original illustration 2, reference 5210Original colors & callouts · Select to enlarge
