Valve Cover LH — Removal — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5211

2. Remove the oil level indicator.

Valve Cover LH — original illustration 1, reference 5211Original colors & callouts · Select to enlarge

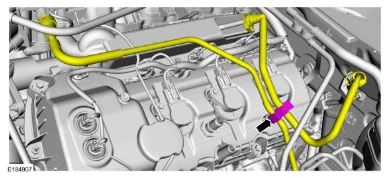

3. Detach the fuel supply tube and EVAP tube retainer from the LH valve cover.

Valve Cover LH — original illustration 2, reference 5211Original colors & callouts · Select to enlarge

4. Remove the LH ignition coil-on-plugs. Refer to: IGNITION COIL-ON-PLUG .

5. Disconnect the oil pressure switch electrical connector.

Detach the wiring harness retainers.
