Valve Cover LH — Removal

Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,212HTML edition
← Chapter contentsManual collection

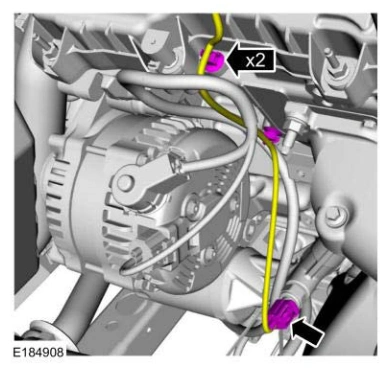

Valve Cover LH — original illustration 1, reference 5212Original colors & callouts · Select to enlarge

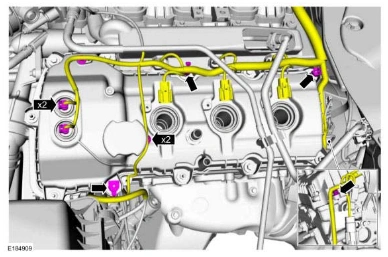

6. Disconnect the VCT oil control solenoid electrical connectors.

Detach the wiring harness retainers.

Valve Cover LH — original illustration 2, reference 5212Original colors & callouts · Select to enlarge

NOTE: While removing the valve cover do not apply excessive force to the VCT oil control solenoid or damage may occur.

NOTE: If the VCT oil control solenoid sticks to the VCT seal, carefully wiggle the valve cover until the bond breaks free or damage to the VCT seal and VCT oil control solenoid may occur.

7. Loosen the bolts and remove the valve cover.
