Valve Cover LH — Installation — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5215

REMOVAL AND INSTALLATION > VALVE COVER LH > INSTALLATION

NOTE: Installation of new seals is only required if damaged seals were removed.

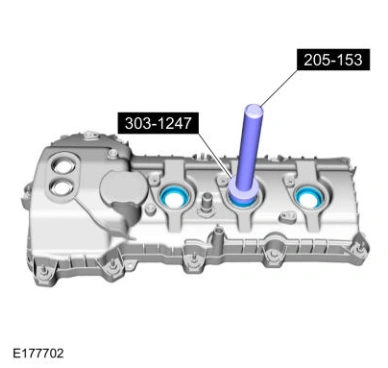

1. If removed, using the special tools, install the spark plug tube seals.

Use Special Service Tool: 303-1247 VCT Spark Plug Tube Seal Remover and Installer, 205-153 (T80T-4000-W) Handle.

Valve Cover LH — original illustration 1, reference 5215Original colors & callouts · Select to enlarge

NOTE: Installation of new seals is only required if damaged seals were removed.

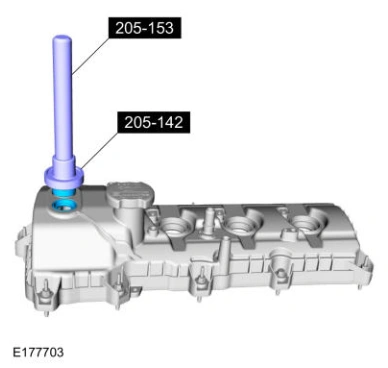

2. If removed, using the special tools, install the VCT oil control solenoid seals.

Use Special Service Tool: 205-142 (T80T-4000-J) Installer, Differential Bearing Cone, 205-153 (T80T-4000-W) Handle.

Valve Cover LH — original illustration 2, reference 5215Original colors & callouts · Select to enlarge
