Valve Cover LH — Installation — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5217

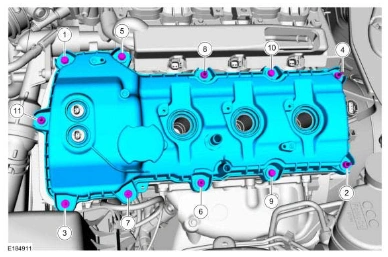

Valve Cover LH — original illustration 1, reference 5217Original colors & callouts · Select to enlarge

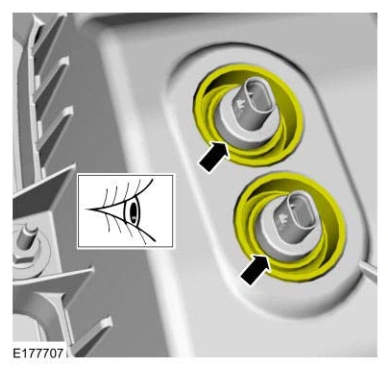

6. Make sure the VCT seals in the valve cover are below the top of the VCT oil control solenoid electrical connector or the VCT seal may leak oil.

Valve Cover LH — original illustration 2, reference 5217Original colors & callouts · Select to enlarge

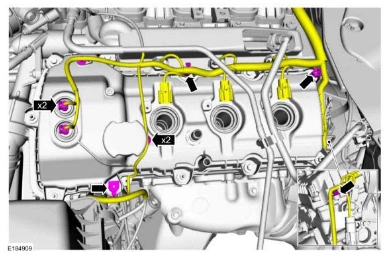

7. Attach the wiring harness retainers.

Connect the VCT oil control solenoid electrical connectors.

Valve Cover LH — original illustration 3, reference 5217Original colors & callouts · Select to enlarge

8. Attach the wiring harness retainers.
