Valve Cover RH — Removal — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5220

Metal Brake Parts Cleaner (U.S.) PM-4-A, PM-4-B (U.S.)

REMOVAL AND INSTALLATION > VALVE COVER RH > REMOVAL

NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces that enters the oil passages, coolant passages or the oil pan, can cause engine failure.

NOTE: Installation of new spark plug seals or VCT seals is only required if seals are damaged.

1. Remove the RH ignition coil-on-plugs. Refer to: IGNITION COIL-ON-PLUG .

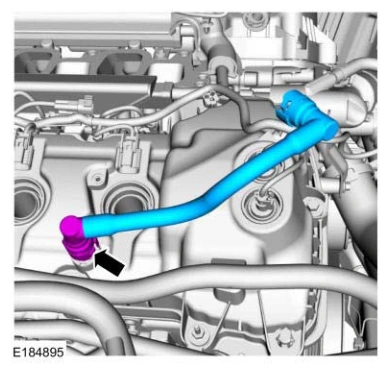

2. Remove the PCV tube.

Valve Cover RH — original illustration 1, reference 5220Original colors & callouts · Select to enlarge

3. Disconnect the VCT oil control solenoid electrical connectors.

Detach the wiring harness retainers.
