Valve Cover RH — Removal — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5221

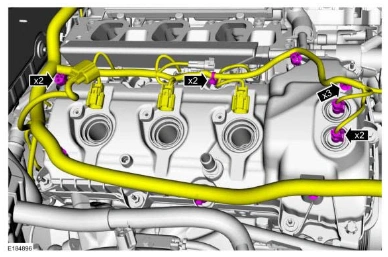

Valve Cover RH — original illustration 1, reference 5221Original colors & callouts · Select to enlarge

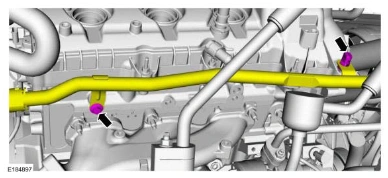

4. Remove the heater tube bolt.

Detach the heater tube retainer from the RH valve cover stud bolt.

Valve Cover RH — original illustration 2, reference 5221Original colors & callouts · Select to enlarge

NOTE: While removing the valve cover do not apply excessive force to the VCT oil control solenoid or damage may occur.

NOTE: If the VCT oil control solenoid sticks to the VCT seal, carefully wiggle the valve cover until the bond breaks free or damage to the VCT seal and VCT oil control solenoid may occur.

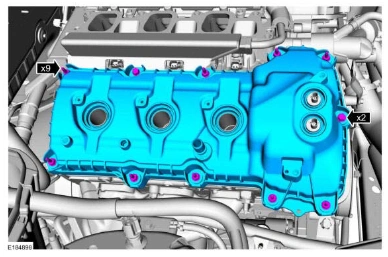

5. Loosen the bolts and remove the valve cover.

Valve Cover RH — original illustration 3, reference 5221Original colors & callouts · Select to enlarge

6. Remove and discard the valve cover gasket.
