Valve Cover RH — Removal — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5222

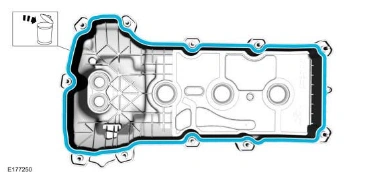

Valve Cover RH — original illustration 1, reference 5222Original colors & callouts · Select to enlarge

NOTE: Inspect the VCT solenoid seals. Remove any damaged seals.

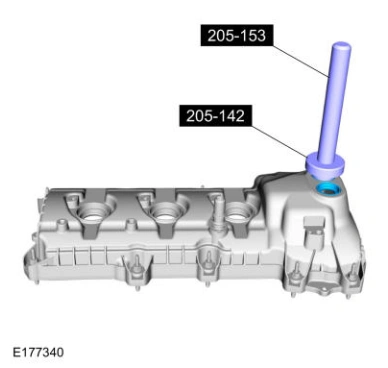

7. If necessary, using the special tools, remove the VCT oil control solenoid seals.

Use Special Service Tool: 205-142 (T80T-4000-J) Installer, Differential Bearing Cone, 205-153 (T80T-4000-W) Handle.

Valve Cover RH — original illustration 2, reference 5222Original colors & callouts · Select to enlarge

NOTE: Inspect the spark plug tube seals. Remove any damaged seals.

8. If necessary, using the special tools, remove the spark plug tube seals.

Use Special Service Tool: 303-1247 VCT Spark Plug Tube Seal Remover and Installer, 205-153 (T80T-4000-W) Handle.
