Valve Cover RH

Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,219HTML edition
← Chapter contentsManual collection

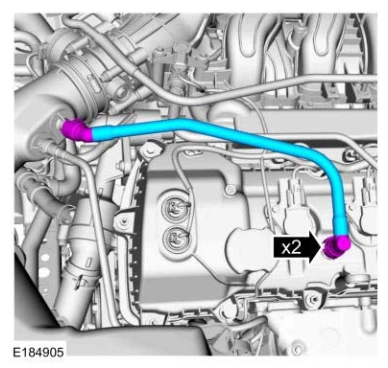

Install the crankcase vent tube.

Valve Cover RH — original illustration 1, reference 5219Original colors & callouts · Select to enlarge

REMOVAL AND INSTALLATION > VALVE COVER RH

Special Tool(s) / General Equipment

205-142 (T80T-4000-J) Installer, Differential Bearing Cone

205-153 (T80T-4000-W) Handle

Valve Cover RH — original illustration 4, reference 5219Original colors & callouts · Select to enlarge

303-1247VCT Spark Plug Tube Seal Remover and Installer TKIT-2006UF-FLM TKIT-2006UF-ROW

Plastic Scraper

Valve Cover RH — original illustration 2, reference 5219Original colors & callouts · Select to enlarge
Valve Cover RH — original illustration 3, reference 5219Original colors & callouts · Select to enlarge

Materials

Name

Specification

Motorcraft® High Performance Engine RTV Silicone TA-357

WSE-M4G323-A6

Motorcraft® Silicone Gasket Remover ZC-30-A

-

Motorcraft® Metal Surface Prep ZC-31-B

-
