Valve Cover LH — Installation

Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,218HTML edition
← Chapter contentsManual collection

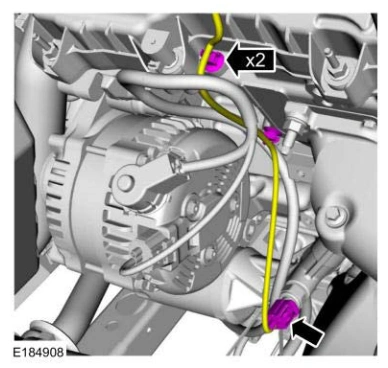

Connect the oil pressure switch electrical connector.

Valve Cover LH — original illustration 1, reference 5218Original colors & callouts · Select to enlarge

9. Install the LH ignition coil-on-plugs. Refer to: IGNITION COIL-ON-PLUG .

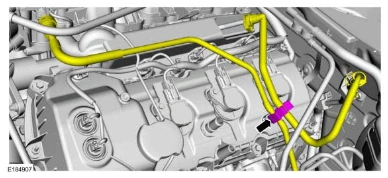

10. Attach the fuel supply tube and EVAP tube retainer to the LH valve cover.

Valve Cover LH — original illustration 2, reference 5218Original colors & callouts · Select to enlarge

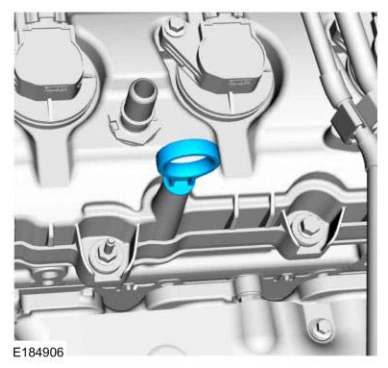

11. Install the oil level indicator.

Valve Cover LH — original illustration 3, reference 5218Original colors & callouts · Select to enlarge

12.

Ford_Mustang_all_2015-2017.pdf · source reference 5218
