Valve Cover LH — Installation — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5216

NOTE: If the valve cover is not installed and the fasteners tightened within 4 minutes, the sealant must be removed and the sealing area cleaned.

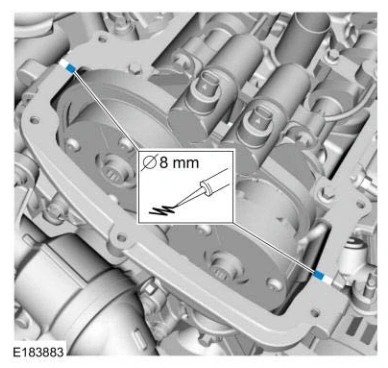

3. Apply an 8 mm (0.31 in) bead of Motorcraft® High Performance Engine RTV Silicone to the engine front cover-to-cylinder head joints.

Material

: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

Valve Cover LH — original illustration 1, reference 5216Original colors & callouts · Select to enlarge

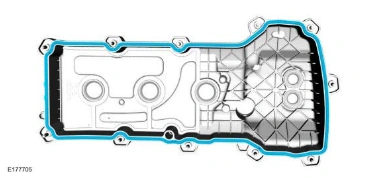

4. Install a new valve cover gasket.

Valve Cover LH — original illustration 2, reference 5216Original colors & callouts · Select to enlarge

5. Install the valve cover and tighten the bolts.

Torque

: 89 lb.in (10 Nm)
