Valve Cover LH — Removal — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5213

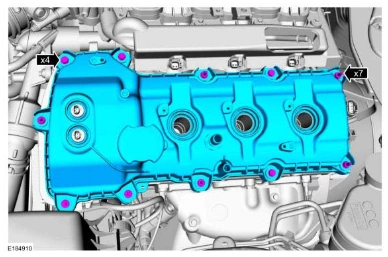

Valve Cover LH — original illustration 1, reference 5213Original colors & callouts · Select to enlarge

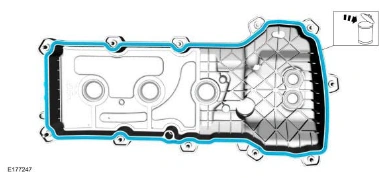

8. Remove and discard the valve cover gasket.

Valve Cover LH — original illustration 2, reference 5213Original colors & callouts · Select to enlarge

NOTE: Inspect the VCT oil control solenoid seals. Remove any damaged seals.

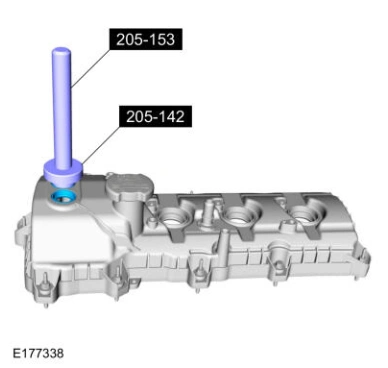

9. If necessary, using the special tools, remove the VCT oil control solenoid seals.

Use Special Service Tool: 205-142 (T80T-4000-J) Installer, Differential Bearing Cone, 205-153 (T80T-4000-W) Handle.

Valve Cover LH — original illustration 3, reference 5213Original colors & callouts · Select to enlarge

NOTE: Inspect the spark plug tube seals. Remove any damaged seals.

10. If necessary, using the special tools, remove the spark plug tube seals.
