Valve Cover RH — Installation — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5223

Valve Cover RH — original illustration 1, reference 5223Original colors & callouts · Select to enlarge

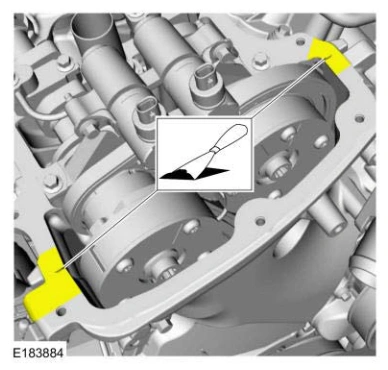

9. Make sure that the mating faces are clean and free of foreign material. Refer to: RTV Sealing Surface Cleaning and Preparation .

Use the General Equipment: Plastic Scraper

Material

: Motorcraft® Silicone Gasket Remover / ZC-30-A

Material

: Metal Brake Parts Cleaner (U.S.) / PM-4-A, PM-4-B (U.S.)

Material

: Motorcraft® Metal Surface Prep / ZC-31-B

Valve Cover RH — original illustration 2, reference 5223Original colors & callouts · Select to enlarge

REMOVAL AND INSTALLATION > VALVE COVER RH > INSTALLATION
