Valve Cover RH — Installation — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5225

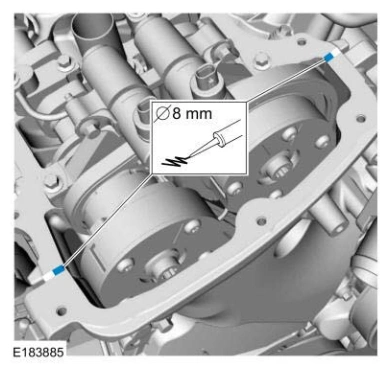

3. Apply an 8 mm (0.31 in) bead of Motorcraft® High Performance Engine RTV Silicone to the engine front cover-to-cylinder head joints.

Material

: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

Valve Cover RH — original illustration 1, reference 5225Original colors & callouts · Select to enlarge

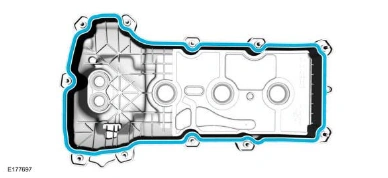

4. Install a new valve cover gasket.

Valve Cover RH — original illustration 2, reference 5225Original colors & callouts · Select to enlarge

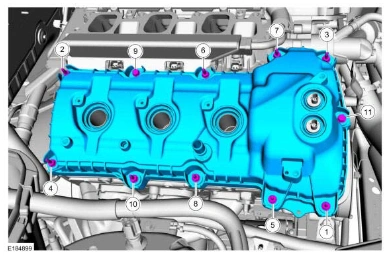

5. Install the valve cover and tighten the bolts.

Torque

: 89 lb.in (10 Nm)

Valve Cover RH — original illustration 3, reference 5225Original colors & callouts · Select to enlarge
