NOTE: Installation of new seals is only required if damaged seals were removed.

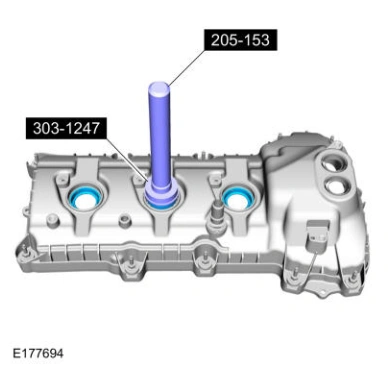

1. If removed, using the special tools, install the spark plug tube seals.
Use Special Service Tool: 303-1247 VCT Spark Plug Tube Seal Remover and Installer, 205-153 (T80T-4000-W) Handle.
NOTE: Installation of new seals is only required if damaged seals were removed.

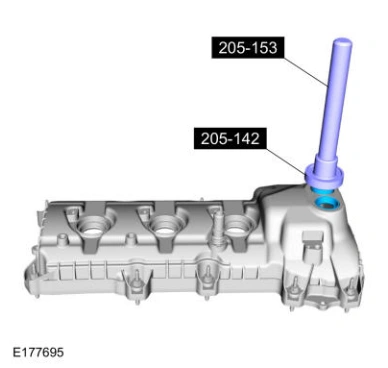

2. If removed, using the special tools, install the VCT oil control solenoid seals.
Use Special Service Tool: 205-142 (T80T-4000-J) Installer, Differential Bearing Cone, 205-153 (T80T-4000-W) Handle.
NOTE: If the valve cover is not installed and the fasteners tightened within 4 minutes, the sealant must be removed and the sealing area cleaned.
