Valve Cover RH — Installation — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5226

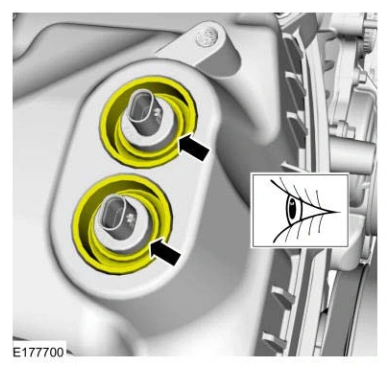

6. Make sure the VCT seals in the valve cover are below the top of the VCT oil control solenoid electrical connector or the VCT seal may leak oil.

Valve Cover RH — original illustration 1, reference 5226Original colors & callouts · Select to enlarge

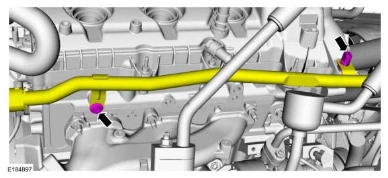

7. Attach the heater tube retainer to the RH valve cover stud bolt.

Install the heater tube bolt.

Torque

: 17 lb.ft (23 Nm)

Valve Cover RH — original illustration 2, reference 5226Original colors & callouts · Select to enlarge

8. Attach the wiring harness retainers.

Connect the VCT oil control solenoid electrical connectors.
