Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,229HTML edition
← Chapter contentsManual collection

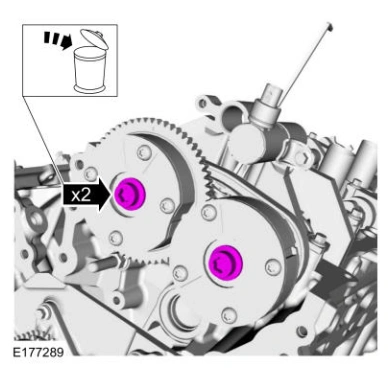

Removal — original illustration 1, reference 5229Original colors & callouts · Select to enlarge

4. Remove the LH VCT units.

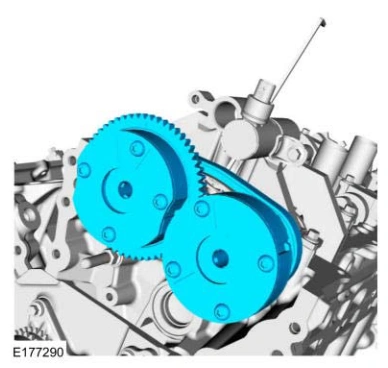

Removal — original illustration 2, reference 5229Original colors & callouts · Select to enlarge

Replacement of the LH secondary timing chain tensioner

NOTE: The following 4 steps are only for the replacement of the secondary timing chain tensioner. Do not reuse the secondary timing chain tensioner if removed, or damage to the engine may occur.

5. Remove Special Service Tool: 303-1530 Tool, Chain Tensioner Hold Down.
