Removal

Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,232HTML edition
← Chapter contentsManual collection

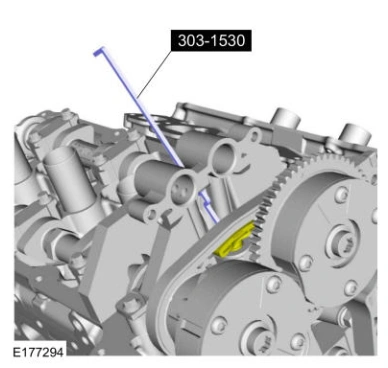

Removal — original illustration 1, reference 5232Original colors & callouts · Select to enlarge

10. Remove and discard the RH VCT unit bolts.

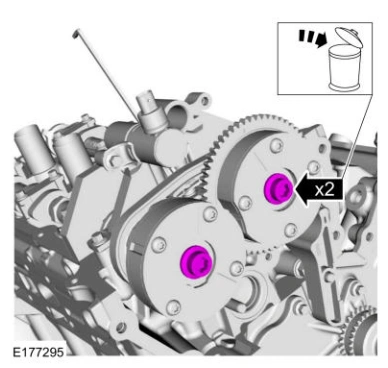

Removal — original illustration 2, reference 5232Original colors & callouts · Select to enlarge

11. Remove the RH VCT units.

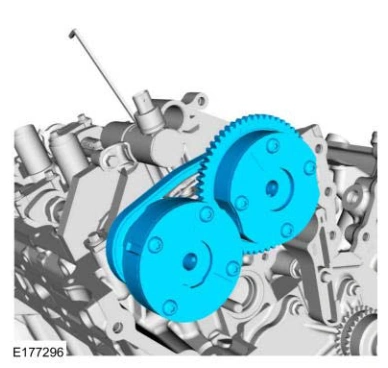

Removal — original illustration 3, reference 5232Original colors & callouts · Select to enlarge
Ford_Mustang_all_2015-2017.pdf · source reference 5232
