Removal — Engine - 3.7L Duratec (227kW & 301PS) · Reference 5233

Replacement of the RH secondary timing chain tensioner

NOTE: The following 4 steps are only for the replacement of the secondary timing chain tensioners. Do not reuse the secondary timing chain tensioners if removed, or damage to the engine may occur.

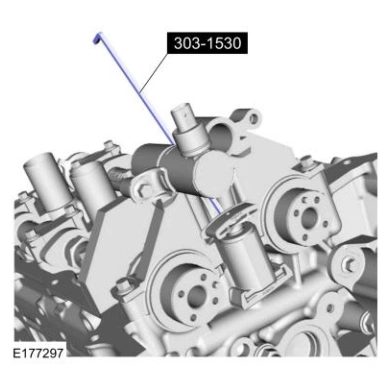

12. Remove Special Service Tool: 303-1530 Tool, Chain Tensioner Hold Down.

Removal — original illustration 1, reference 5233Original colors & callouts · Select to enlarge

NOTE: A slight twisting motion will aid in the removal of the VCT oil control solenoid.

NOTE: Keep the VCT oil control solenoid clean of dirt and debris.

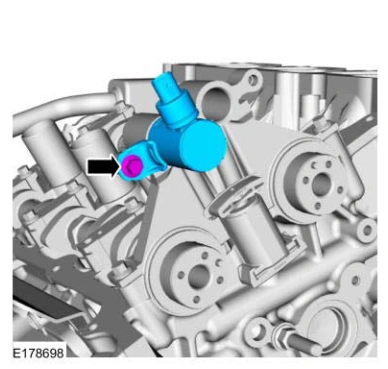

13. Remove the bolt and the exhaust VCT oil control solenoid.

Removal — original illustration 2, reference 5233Original colors & callouts · Select to enlarge
