Installation

Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,236HTML edition
← Chapter contentsManual collection

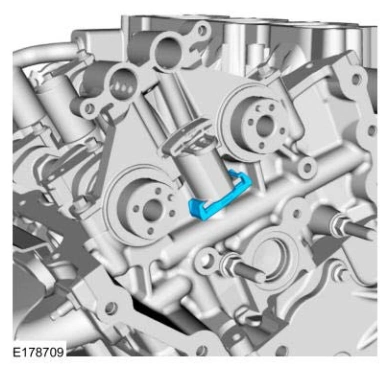

Installation — original illustration 1, reference 5236Original colors & callouts · Select to enlarge

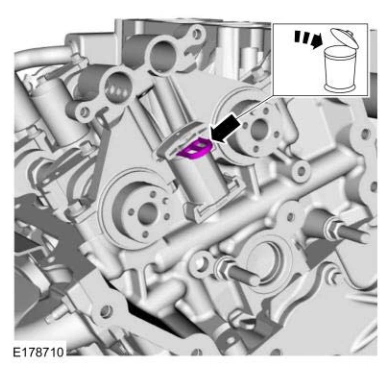

4. Remove and discard the RH secondary timing chain tensioner shipping clip.

Installation — original illustration 2, reference 5236Original colors & callouts · Select to enlarge

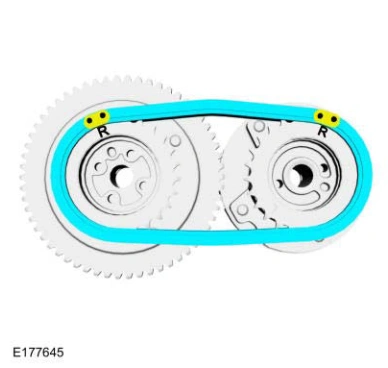

5. Align the colored links with the timing marks and assemble the RH VCT units.

Installation — original illustration 3, reference 5236Original colors & callouts · Select to enlarge
Ford_Mustang_all_2015-2017.pdf · source reference 5236
