Installation

Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,234HTML edition
← Chapter contentsManual collection

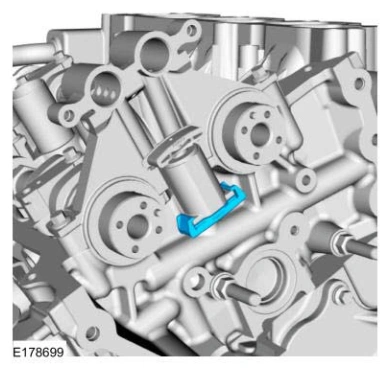

14. Remove the RH secondary timing chain tensioner shoe.

Installation — original illustration 1, reference 5234Original colors & callouts · Select to enlarge

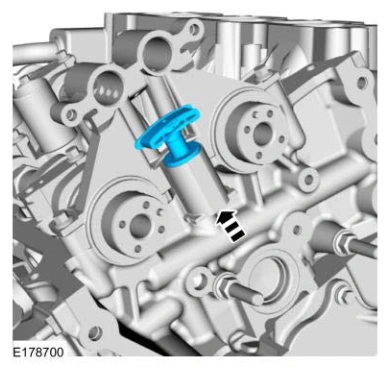

15. Remove the RH secondary timing chain tensioner by pushing up from the bottom.

Installation — original illustration 2, reference 5234Original colors & callouts · Select to enlarge

REMOVAL AND INSTALLATION > VARIABLE CAMSHAFT TIMING (VCT) UNIT >

INSTALLATION

Installation of the RH secondary timing chain tensioner

NOTE: The following 10 steps are only for the installation of the RH secondary timing chain tensioners. Do not reuse the secondary timing chain tensioners if removed, or damage to the engine may occur.

NOTE: Do not remove the secondary timing chain tensioner shipping clip, until
