NOTE: It may be necessary to rotate the camshafts slightly, to install the RH secondary timing assembly.

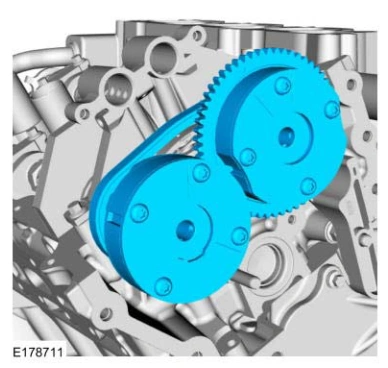

6. Position the RH VCT units and secondary timing chain onto the camshafts by aligning the holes in the VCT units with the dowel pins in the camshafts.

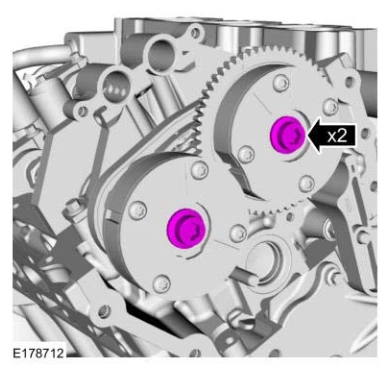

7. Install the new RH VCT unit bolts and tighten in 4 stages.
Torque:
Stage 1: 30 lb.ft (40 Nm)
Stage 2: Loosen: 1 turn(s)
Stage 3: 18 lb.ft (25 Nm)
Stage 4: 180°
8.
