Installation

Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,239HTML edition
← Chapter contentsManual collection

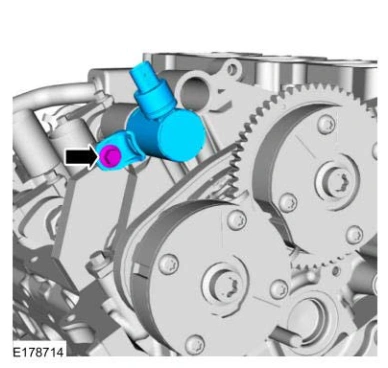

Installation — original illustration 1, reference 5239Original colors & callouts · Select to enlarge

10. Install Special Service Tool: 303-1530 Tool, Chain Tensioner Hold Down.

Installation — original illustration 2, reference 5239Original colors & callouts · Select to enlarge

RH variable camshaft timing (VCT) unit

11. Align the colored links with the timing marks and assemble the RH VCT units.
