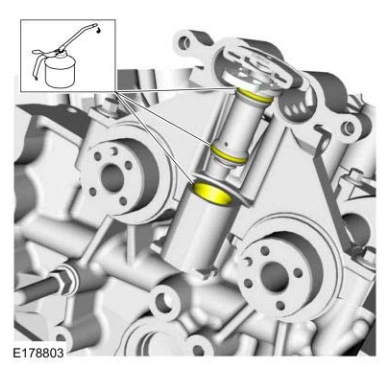

15. Apply clean engine oil to the secondary timing chain tensioner O-ring seals and mega cap bore.
: Motorcraft® SAE 5W-20 Premium Synthetic Blend Motor Oil (U.S.) / XO-5W20-QSP (U.S.) (WSS-M2C945-A)
NOTE: Do not remove the secondary timing chain tensioner shipping clip, until instructed to do so.

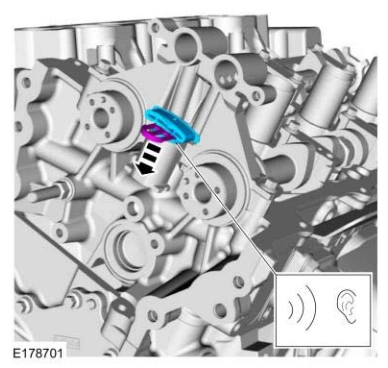

16. Install the LH secondary timing chain tensioner by pushing it down all the way until a snap is heard and the tensioner is seated all the way down the mega cap bore.
17. Install the LH secondary timing chain tensioner shoe.
