Installation

Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,243HTML edition
← Chapter contentsManual collection

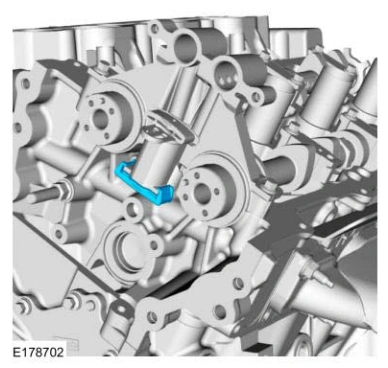

Installation — original illustration 1, reference 5243Original colors & callouts · Select to enlarge

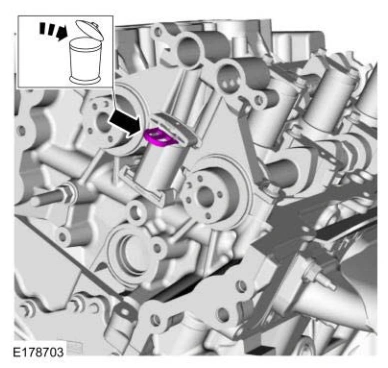

18. Remove and discard the LH secondary timing chain tensioner shipping clip.

Installation — original illustration 2, reference 5243Original colors & callouts · Select to enlarge

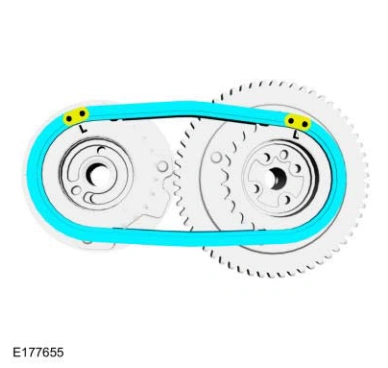

19. Align the colored links with the timing marks and assemble the LH VCT units.

Installation — original illustration 3, reference 5243Original colors & callouts · Select to enlarge
Ford_Mustang_all_2015-2017.pdf · source reference 5243
