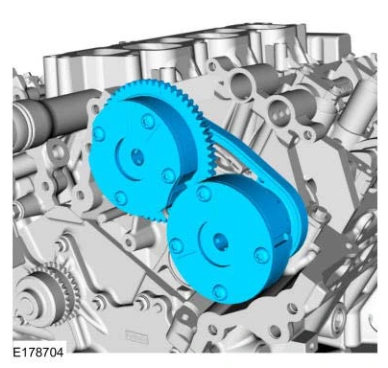

20. Position the LH VCT units and secondary timing chain onto the camshafts by aligning the holes in the VCT units with the dowel pins in the camshafts.

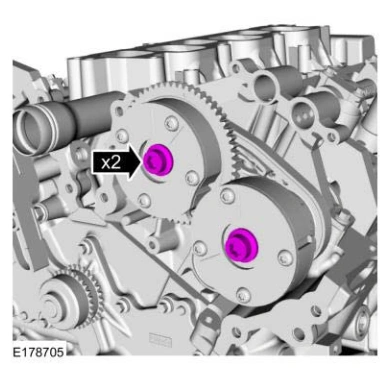

21. Install the new LH VCT unit bolts and tighten in 4 stages.
Torque:
Stage 1: 30 lb.ft (40 Nm)
Stage 2: Loosen: 1 turn(s)
Stage 3: 18 lb.ft (25 Nm)
Stage 4: 180°
22. Activate the LH secondary timing chain tensioner by pressing down on the secondary timing chain and tensioner top shoe until it bottoms out, let go of the tensioner and it will spring up putting tension on the chain.
