Engine - 3.7L Duratec (227kW & 301PS)

Source configuration appliesSource reference 5,246HTML edition
← Chapter contentsManual collection
Installation — original illustration 1, reference 5246Original colors & callouts · Select to enlarge

LH variable camshaft timing (VCT) unit

25. Align the colored links with the timing marks on the LH VCT units.

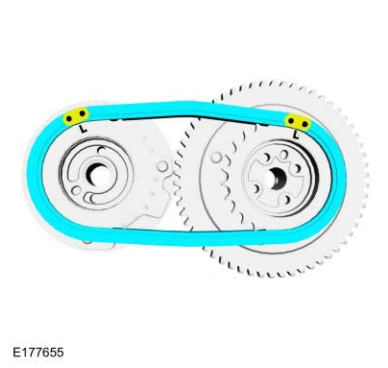

Installation — original illustration 2, reference 5246Original colors & callouts · Select to enlarge

NOTE: It may be necessary to rotate the camshafts slightly, to install the LH secondary timing assembly.

26. Position the LH VCT units and secondary timing chain onto the camshafts by aligning the holes in the VCT units with the dowel pins in the camshafts.
